Available in straight border pieces or corner pieces
Available in various colors
Use with 4.5mm, 6.5 mm, 7mm SupraTiles
Easy interlocking installation
Ramped edges reduces tripping hazards
Use with 4.5mm, 6.5 mm, 7mm SupraTiles

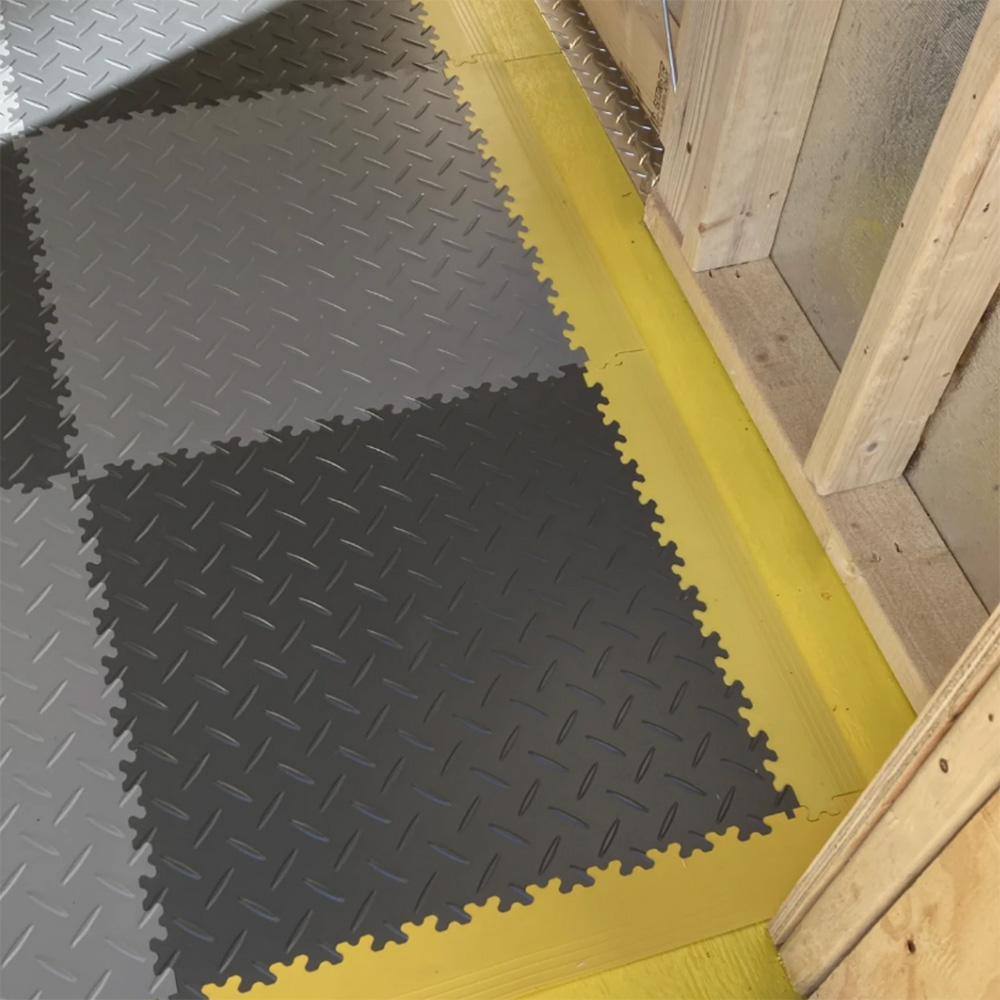

Use these SupraTile edging ramps to provide a finished edging and to complete the look of your SupraTile floor.

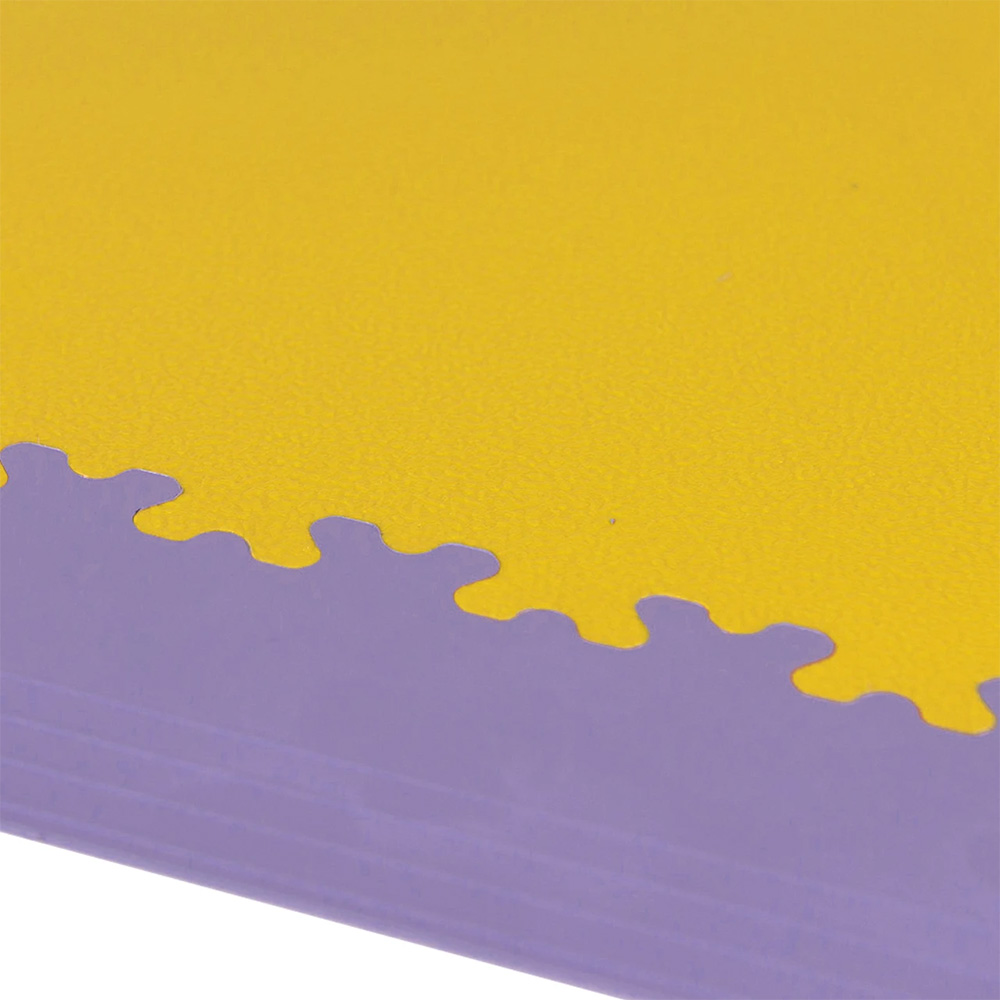

Matching interlocking edging to coordinate with SupraTile 4.5 mm, 6.5 mm, and 7mm thickness tiles. Available in 'straight', which match up with a single tile edge, or 'corner' which has an extension creating a 'miter look' clean joint on corners.
Sold in 4 packs only. Each piece is approximately 2.5 inch deep x length of your tile and creates a smooth transition ramp. Teeth can be cut off and glued flush against tiles if needed at a point where teeth have been removed for trimming/fitting.
To calculate how many packs you need, take the number of inches that you need and divided by the size of your tile (20 inch for 4.5mm Dovetail, 20.5 inch for 4.5mm, 6.5mm and 7mm), this gives you the number of pieces you need, and then round that number into the number of 4-packs you need.
Interlocking edging option is available for these SupraTile products:
4.5 mm T-Joint
4.5 mm Dovetail
6.5 mm T-Joint
6.5 mm Dovetail
7 mm Dovetail
Please note that interlocking edging is not available for either the 5.5mm or 7mm hidden joint series, please contact us for edging options.
Installation note: Edging is manufactured from different batch lots than tiles and may require heating with a heat gun or similar to soften the edging temporarily to assure proper fit and alignment. Inexpensive heat guns can be purchased locally at home centers or online.
Maintenance
Clean with damp mop, hot water and common household floor cleaner.
Shipping
Ships in cartons via ground service to your door, for larger orders product may ship freight delivery.
WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the
State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
SKU#
EdgeSC4P
In Stock
Yes
Product Type
Tile
Material Type
PVC Plastic
Product Edging
Interlocking
Width
0.21 feet
Length
1.67 feet
SF per Item
5.52
Weight
1.80 lbs
Packaging
Cartons
Number of Pieces per Package Type
4
Non Absorbent
Yes
Special Adhesives
No
Universal Interlock
Yes
Interlock Loss
0.04 feet
Material Hardness
Shore A 92
Interlocking Connections
Yes
Made In
Ireland
Surface Finish
Smooth, beveled
Surface Design
Solid Color
Installation Method
Interlocking, dry lay
UV Treated
No
Reversible
No
Border Strips Included
No
Manufacturer Warranty
20 year
1 star ratings
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Reviews with Images
Dennis (CHESAPEAKE, VA)
08/28/2018

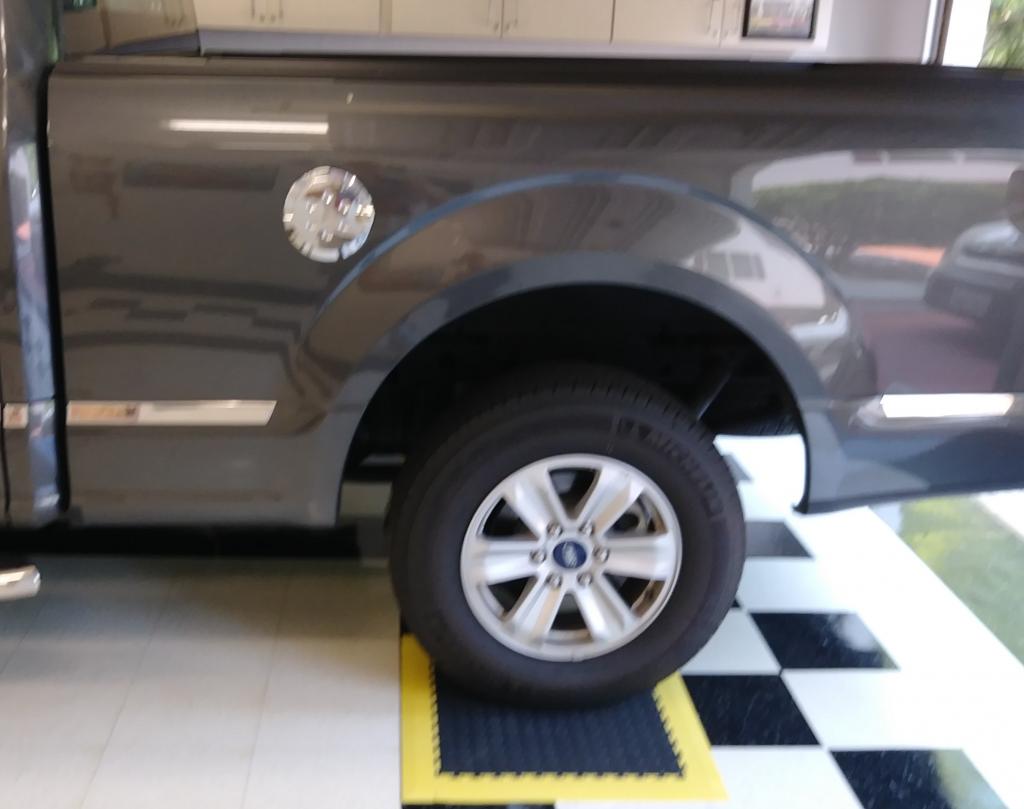

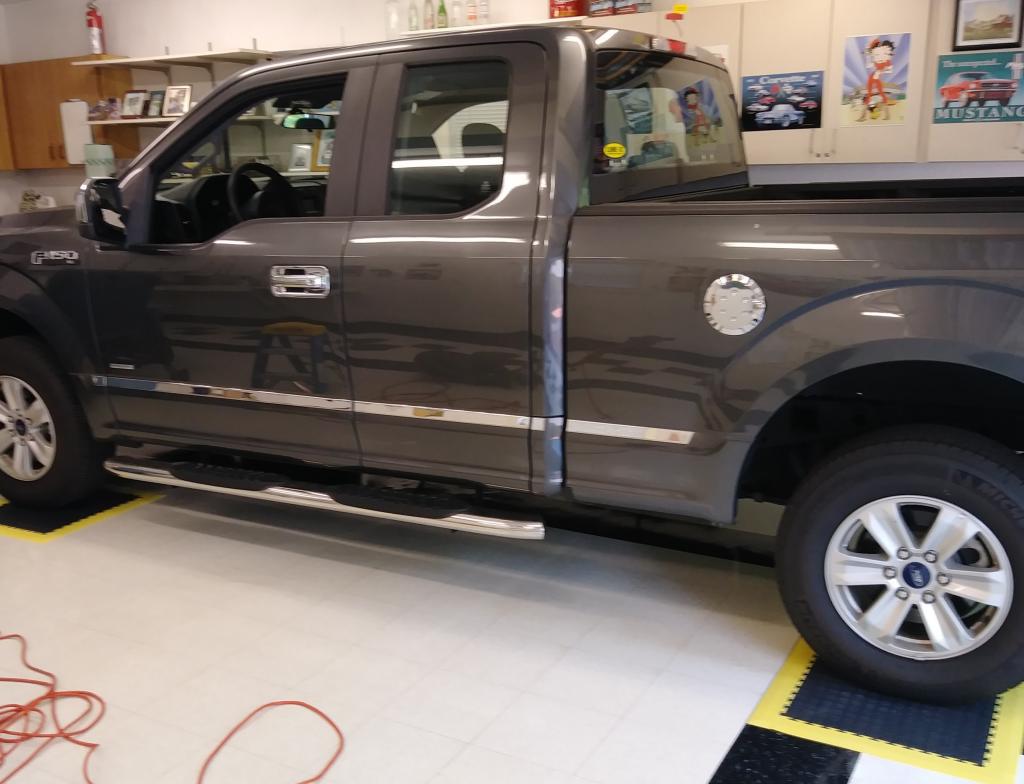

The Great Mats worked out really good. These will be most helpful keeping the tire treads off my garage floor. I plan to order another set. Thank you very much.
Dennis Doss
a satisfied customer.
Customer Rating:
08/28/2018
The Great Mats worked out really good. These will be most helpful keeping the tire treads off my garage floor. I plan to order another set. Thank you very much.
Dennis Doss
a satisfied customer.
Dennis
CHESAPEAKE, VA
Product Questions:
Q: What does this mean: T-Joint or Dovetolail straight and corner?
A: This references the type of interlock design for the tile. The images for each product show what the interlocks look like.
