1. PVC on microcellular vinyl base
2. Diamond plant anti fatigue mat
3. Heavy duty mat
4. Dry area mat
5. Slip and wear resistant
6. Ergonomic safety mat
7. Easy to clean
8. Beveled edges

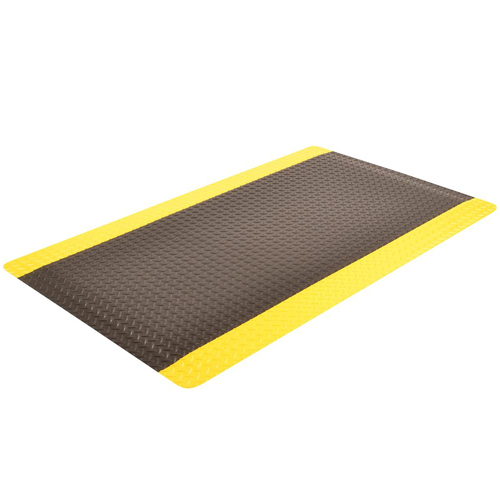

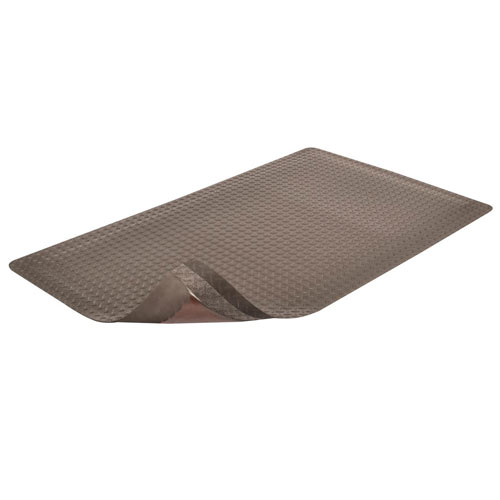

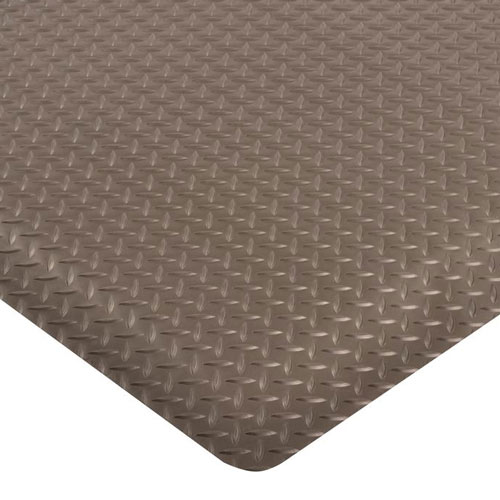

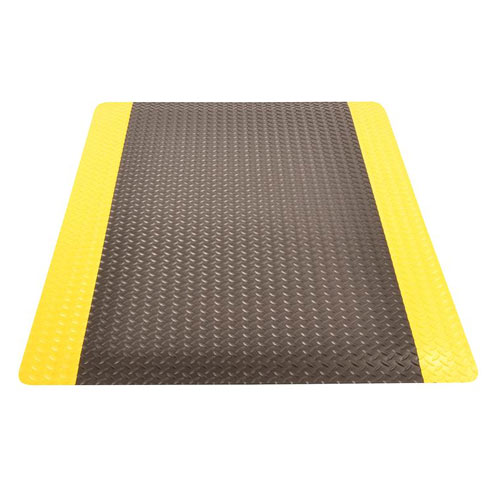

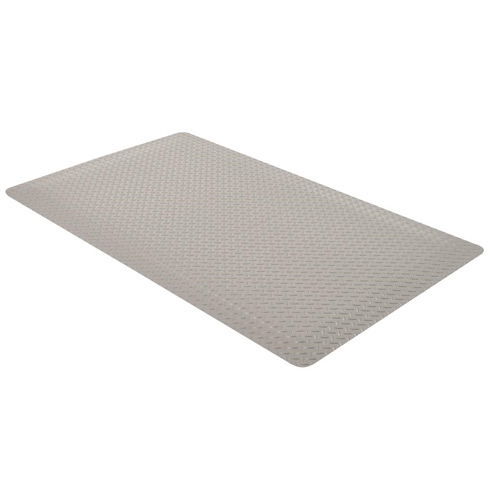

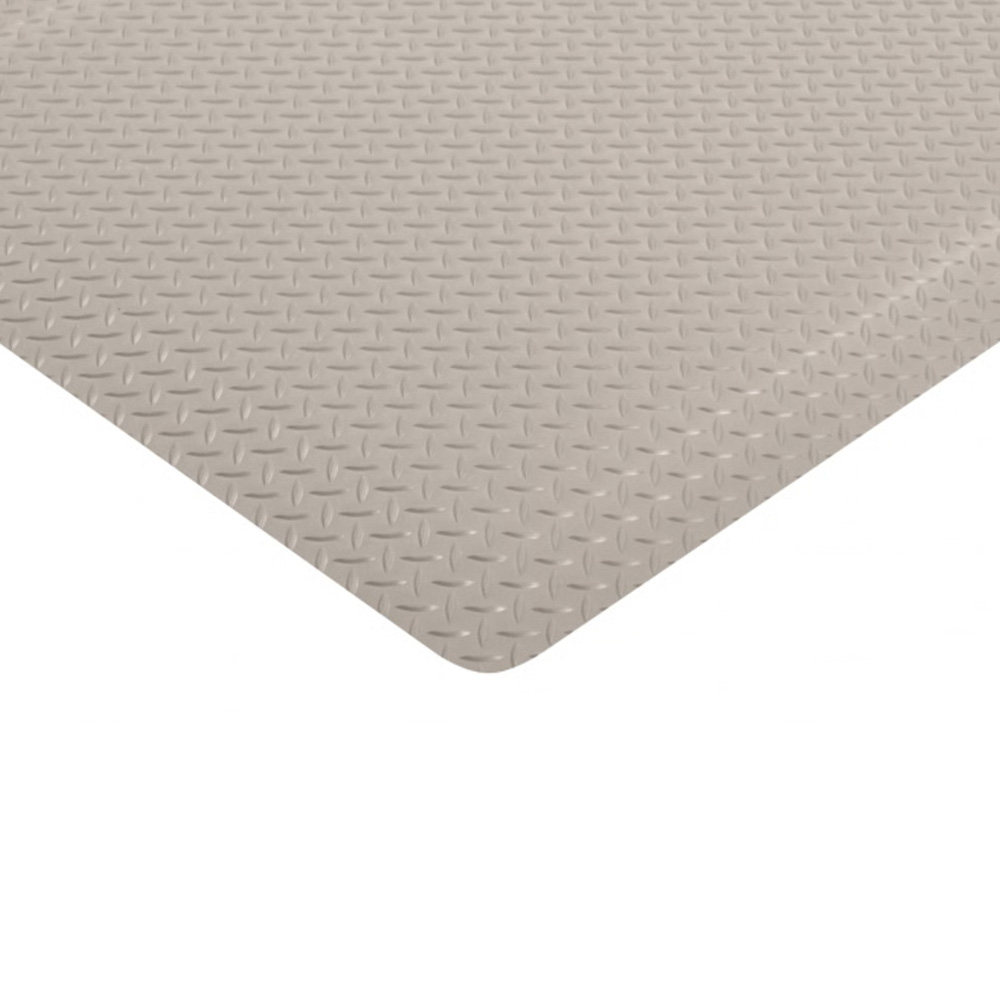

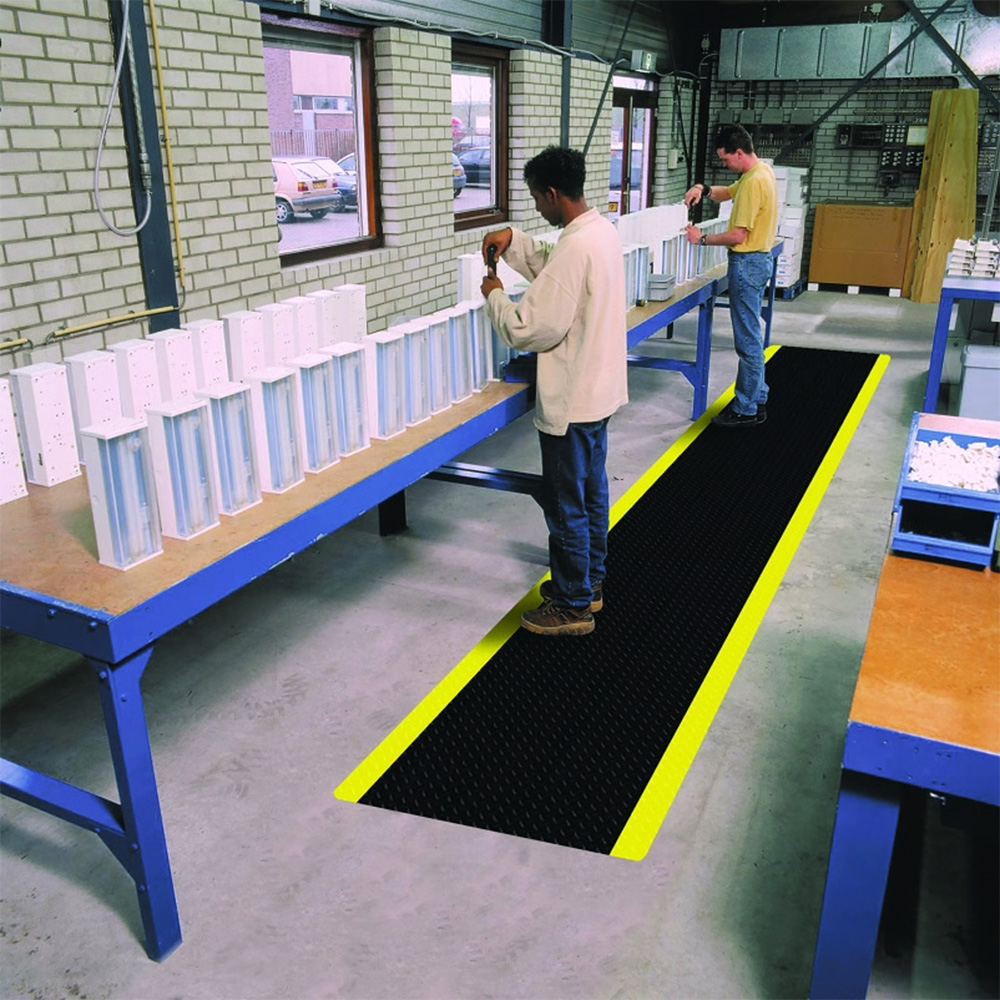

Cushion Trax Ultra Anti-Fatigue Mat 3/4 Inch 4x75 Ft. is a very high-quality anti-fatigue floor mat. Designed to meet the strictest industrial requirements for today’s applications and is well-matched for multi-shift dry work areas where the worker is standing for long periods of time. The heavy-duty diamond plate surface delivers non-directional traction and is easy to clean. The top shell is a long-lasting vinyl top surface made from 100% recycled materials and joined with a dense closed-cell foam base using UniFusion technology. This all but removes the likelihood of delamination. These laminate safety fatigue mats come with RedStop, an exclusively designed nonslip backing, that removes the slipping and sliding of mats on smooth floors such as tile, wood, marble, and treated concrete. The diamond plate fatigue mat comes with beveled edges reducing trip hazards and allowing for ease of stepping on and off the mat.


Width: 4 ft
Length: 75 ft
Thickness: 3/4 inch
Sq ft: 300
Weight: 420 lbs

Test Data:
Compression Deflection at 20 lbs/sq. inch 0.373 inch, at 40 lbs/sq. inch 0.436 inch
ASTM D-3574 Test H, ASTM D-3574 Test H (Measured in % rebound) – 15 percent
Abrasion Resistance (Measured in weight loss) - ASTM D-3884-01 – at 500 cycles (-0.3 percent), at 1000 cycles (-0.3 percent)
Static Coefficient of Friction - ASTM C-1028-96 – Dry 0.630
Durometer / Hardness - ASTM D-2240-02 – Shore A 85
Tear Resistance (Measured in lbs.) - ASTM D-1004-94a-03 – 54.6
Critical Radiant Flux – 0.58 watts/sq. cm
Flammability (Pass/fail) - CPSC FF 1-70 (ASTM D2859) - Pass
