1. Custom sizes and cutouts
2. 14 oz. vinyl covers
3. Wood backing for direct wall attachment with lip top and bottom
4. 2 inch standard thickness
5. Optional Z-Clip installation options
6. Made in the USA, quality manufacturing
7. Optional class A fire rated panel options
8. ASTM 2440-04 impact rated

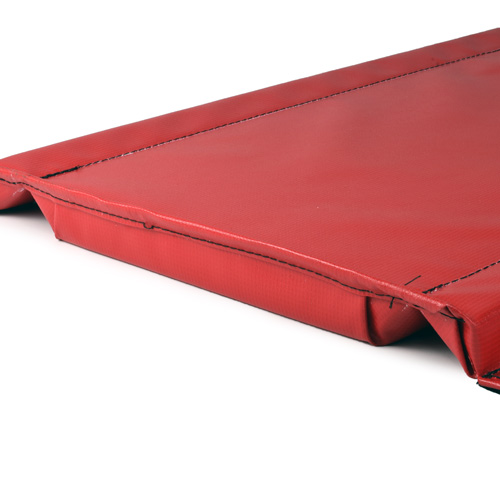

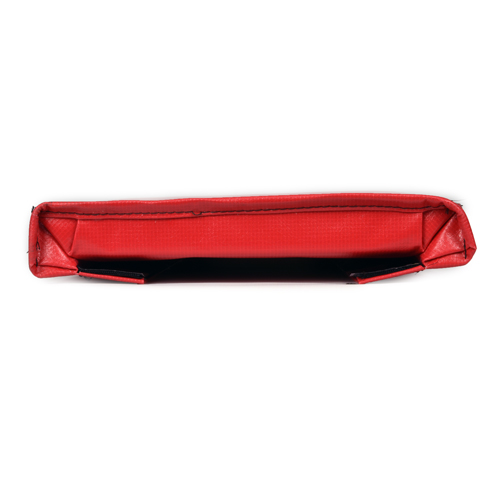

Steel I-beams can be especially hazardous in a gymnasium area. These I-beam channel wraps offer a quick and simple answer to covering beams. The pads wrap the face and front edge of the I-beam to the back side of the beam face with self-adhesive hook & loops. Customizable to meet the needs of your facility’s structure and can include cutouts, adjusting height and width of padding, color. I-Beam channel wraps offer a simple answer to cover an I Beam and protect against a serious collision.

Protect exposed I-beams commonly found in indoor facilities
Designed to wrap the face and front edges of steel beam
Indoor Class A fire rated 14 oz. vinyl
1-1/4 inch high impact XPE foam
Choose from a variety of standard color options
Optional high resolution digitally printed graphics

Specifications:
Interior Use
Application: Iron, Steel or Other Smooth Faced I-Beam Material
Foam Core: 1.25 inch THICK ASTM F2440-04 High Impact Foam

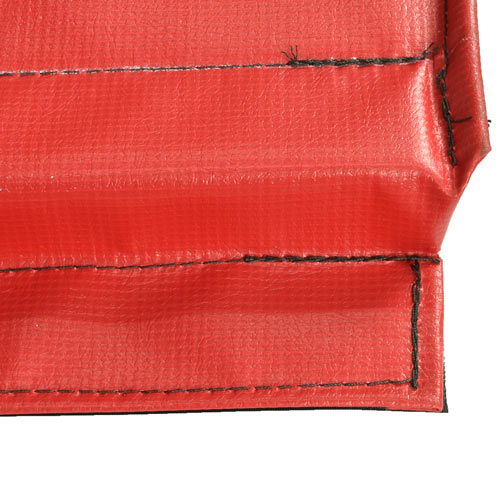

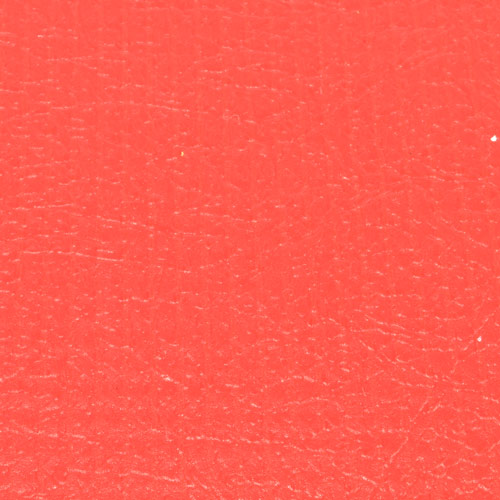

Vinyl Covering: 14 oz. Vinyl, Leather Grain appearance, 1300 Denier Polyester Base Fabric, Tear Strength: 93 x 83, Strip Tensile: 365 x 348, Anti-fungal, Flame Resistant: Class A. Colors per manufacturer’s standard selection, as selected by Architect. Vinyl cover is stitched using 6 lbs. bonded polyester black thread.

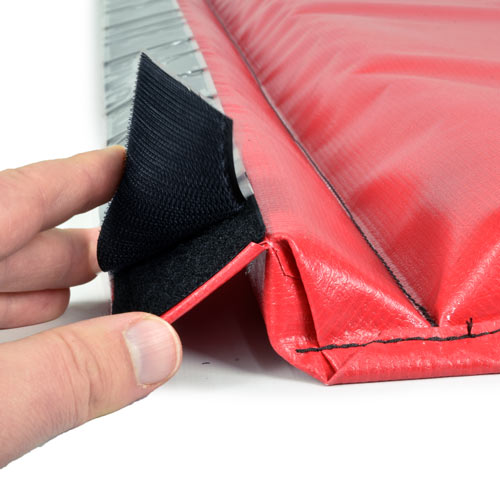

Attachment: 2 inch Loop is sewn to the pad. Pressure sensitive - Hook is provided for attachment to the beam.

• View Specifications Data Sheet
