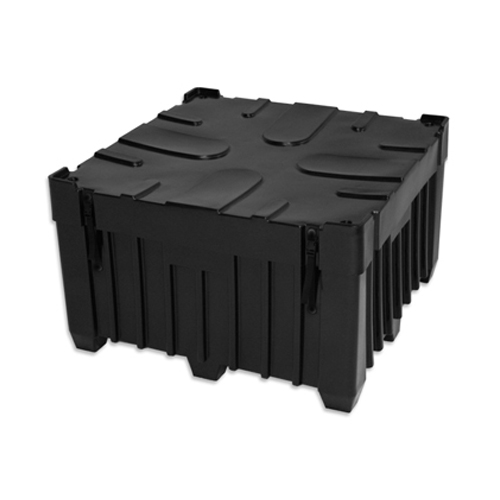

Shipping Case or Storage for Trade Show or Event Flooring

NOTE: This item is a custom order and is not returnable.

Capacity for 2x2 Foot Tiles

• 3/8 inch thick foam home gym pebble tiles: up to 296 tiles - (roughly 34x34 foot area)
•
  10mm thick sport plus designer foam tiles: up to 284 tiles - (roughly 32x34 foot area)
•
  1/2 inch thick wood grain reversible foam tiles: up to 224 tiles - (roughly 28x30 foot area)
•
  5/8 inch thick premium foam tiles: up to 176 tiles - (roughly 26x26 foot area)
•
  5/8 inch thick interlocking carpet tiles: up to 176 tiles - (roughly 26x26 foot area)
•
  3/4 inch thick foam gym floor pebble tiles: up to 148 tiles - (roughly 24x24 foot area)
•
  3/4 inch thick home sport and play mat: up to 148 mats - (roughly 24x24 foot area)
•
  1 1/2 inch thick home BJJ mats: up to 72 mats - (16x18 foot area)

For maximum storage capacity, 2x2 foot tiles should be interlocking together in 4x4 ft squares with borders strips removed and stacked in flat layers.

This case is intended to be used for Greatmats products only and not any other foam tiles from other factories, such as the Comfort Carpet Tiles or the Rustic Wood Grain Tiles. These tiles have separate cases as these tiles are a little larger than the Greatmats foam and Royal carpet tiles.

Capacity for 1x1 Meter Mats

• 3/4 inch thick dog agility mats: up to 37 mats - (approximately 20x20 foot area)
•
  20 mm thick pro taekwondo martial arts mats: up to 35 mats - (approx. 16x20 foot area)
•
  1 inch thick martial arts karate mats: up to 28 mats - (approx. 16x16 foot area)
•
  1 1/4 inch thick judo jiu jitsu mats: up to 22 mats - (approx. 13x16 foot area)
•
  1 1/2 inch thick grappling mma mats: up to 18 mats - (approx. 13x13 foot area)

Since 1x1 meter mats are roughly 40x40 inches in size, there will be extra space in the 48x48 inch diameter case for additional equipment.

How much can I expect the cases to weigh?

The case itself weighs 105 pounds while the contents of the case can vary in weight greatly. For lower density EVA foam tiles such as the 5/8 Premium tiles, you'll add up to 175 pounds of additional weight weight. For higher density foam tiles, such as the sport plus designer tiles, that additional weight could add up to around 565 pounds, bringing the combined weight to around 670 pounds.

If you are filling the case with floor tiles of a more dense material such as plastic, rubber or vinyl, the weight is significantly more.

Shipping

Ships via freight delivery shrink wrapped on pallets.

This Product Ships Freight Only.
Please review our shipping disclaimer.

SKU#	UF4848C
In Stock	Yes
Material Type	Polypropylene Plastic
Thickness	Less than 2 mm
Width	4.29 feet
Length	4.29 feet
SF per Item	0.00
Weight	105.00 lbs
Packaging	Shrink Wrapped on Pallets
Non Absorbent	Yes
Special Adhesives	No
Interlock Loss	0.00 feet
Interlocking Connections	No
Made In	USA
Surface Design	Solid color
UV Treated	No
Reversible	No
Border Strips Included	No
Manufacturer Warranty	1 year limited
