Outdoor Field Wall Padding with Z Clip 5 ft x 4 ft

Outdoor Field Wall Padding with Z Clip 5 ft x 4 ft Dolphins.
/images/wall-pads/outdoor-field-wall-padding-dolphins.jpg
Outdoor Field Wall Padding with Z Clip 5 ft x 4 ft Green pad.
/images/wall-pads/outdoor-field-wall-padding-green.jpg
Outdoor Field Wall Padding with Z Clip 5 ft x 4 ft Cowboys.
/images/wall-pads/outdoor-field-wall-padding-cowboys.jpg
Outdoor Field Wall Padding with Z Clip 5 ft x 4 ft Vikings.
/images/wall-pads/outdoor-field-wall-padding-vikings.jpg

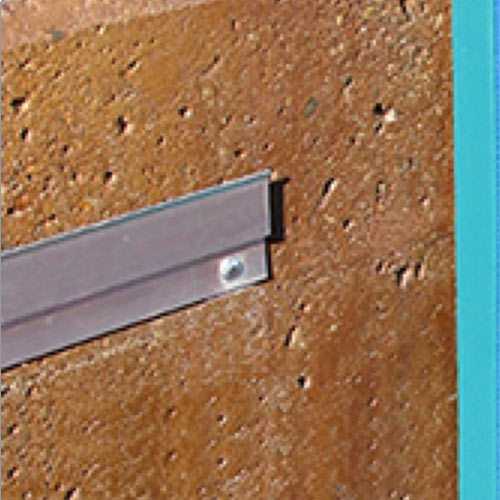

Outdoor Field Wall Padding with Z Clip 5 ft x 4 ft Z Clip.
/images/wall-pads/outdoor-field-wall-padding-mount-zclip.jpg
Be the first to review this product
$509.20/each
Save 5%
$25.46/sqft
Reg: $536.00/each
Handling Time Estimate: 4-6 Weeks
  • Made in the USA
  • Moisture resistant, matching backer board
  • UV resistant 18 oz. vinyl covers
  • See More Details

Colors:

  • Black
  • Burgundy
  • Emerald
  • Grey
  • Red
  • Royal Blue
  • Yellow
  • Aqua
  • Blue
  • Dark Blue
  • Forest Green
  • Green
  • Navy Blue
  • Orange

Please call 877-822-6622 to backorder this product.

Pickup
Delivery
Request Sales Quote
Please Call for Sample Options
  1. Made in the USA
  2. Moisture resistant, matching backer board
  3. UV resistant 18 oz. vinyl covers
  4. Large selection of color choices
  5. Z Clip attachment method for concrete and wood walls
  6. 3 inch thick high impact polyurethane foam
  7. Class A flame retardant
  8. Graphics and chain link fence installation options available
Made in USA

Wood or concrete stadium walls, Outdoor track arenas, Outdoor concession stands

NOTE: This item is a custom order and is not returnable.

Featuring a tear and abrasion resistant 18 oz vinyl, our for masonry and wood walls will provide safety for outdoor athletes and fans alike.

For concrete and wood walls, Outdoor Field Wall Padding with Z Clip 5 ft high x 4 ft wide is manufactured with 18 oz. high UV resistant extruded vinyl, 3 inch thick high impact polyurethane foam padding and a 5/8 inch thick engineered moisture resistant sheathing panel. It is a time-tested, proven product that provides facilities with an affordable safety solution. Outdoor Field Wall Padding with Z Clip is installed on concrete or wood walls with the Z Clip installation method, which includes stainless bolts. For installation on chain link fences, please see our Outdoor Field Wall Padding for Chain Link Fences products.

Our manufacturer has installed padding in hundreds of venues around the world and is the industry leader, offering site specific safety with customizing capabilities. Outdoor Field Wall Padding with Z Clip is available in a variety of sizes and colors, for a custom design. In addition, optional custom digital graphics and/or lettering is available with our Outdoor Field Wall Padding with Z Clip with Graphics products.

Product components:
Backing: 5/8 inch moisture resistant composite backerboard. All sides are stained and sealed with an exterior grade finish.

Vinyl covering:
- 18 oz per sq. yard laminated vinyl, unbalanced coating
- Fabric: 1000 Denier polyester basic fabric
- Tear strength test: warp 85 lbs., fill 83 lbs.
- Tensile strength: warp 221 lbs., fill 216 lbs.
- Weft insertion: 9 x 9
- Superior UV inhibitors
- Cold crack: minus 20 degrees Fahrenheit
- Class A flame retardant
- Vinyl cover is wrapped around the backside of the plywood and stapled every 3 inches with stainless steel staples.
- Each pad has 3 weep holes to evacuate moisture

Filler Foam: 3 inch high impact foam. Filler foam is glued to plywood backing

Adhesive: Synthetic resin rubber base adhesive, high flexibility factor, water resistant, heat & cold resistant, high bonding factor

Attachment: Aluminum extrusion, 2.5 inches wide x .125 inch thick, mounted to the backer panel using 1/4 x 3/4 inch stainless bolts screwed into 1/4 inch threaded washer inserts.


Wall pads are available in custom sizes. Please call to order.

Maintenance

Wipe down as needed.


Shipping

Ships via freight delivery shrink wrapped on pallets.

This Product Ships Freight Only.
Please review our shipping disclaimer.

SKU# BFWPZ45
In Stock Yes
Product Type Mat
Material Type Vinyl covered Foam
Product Edging Straight
Thickness 3-3/4 inch
Width 4.00 feet
Length 5.00 feet
SF per Item 20.00
Weight 52.50 lbs
Packaging Shrink Wrapped on Pallets
Number of Pieces per Package Type 18
Non Absorbent Yes
Special Adhesives No
Interlock Loss 0.00 feet
Interlocking Connections No
Made In USA
Surface Finish Smooth flat
Surface Design Solid color
Installation Method Z Clip
UV Treated Yes
Reversible No
Border Strips Included No
Manufacturer Warranty 1 year limited
