NOTE: This item is a custom order and is not returnable.

The LonPlate II Diamond Plate Vinyl Flooring Rolls are 6 feet by 60 feet and 3 mm thick.

Diamond Plate Vinyl Flooring

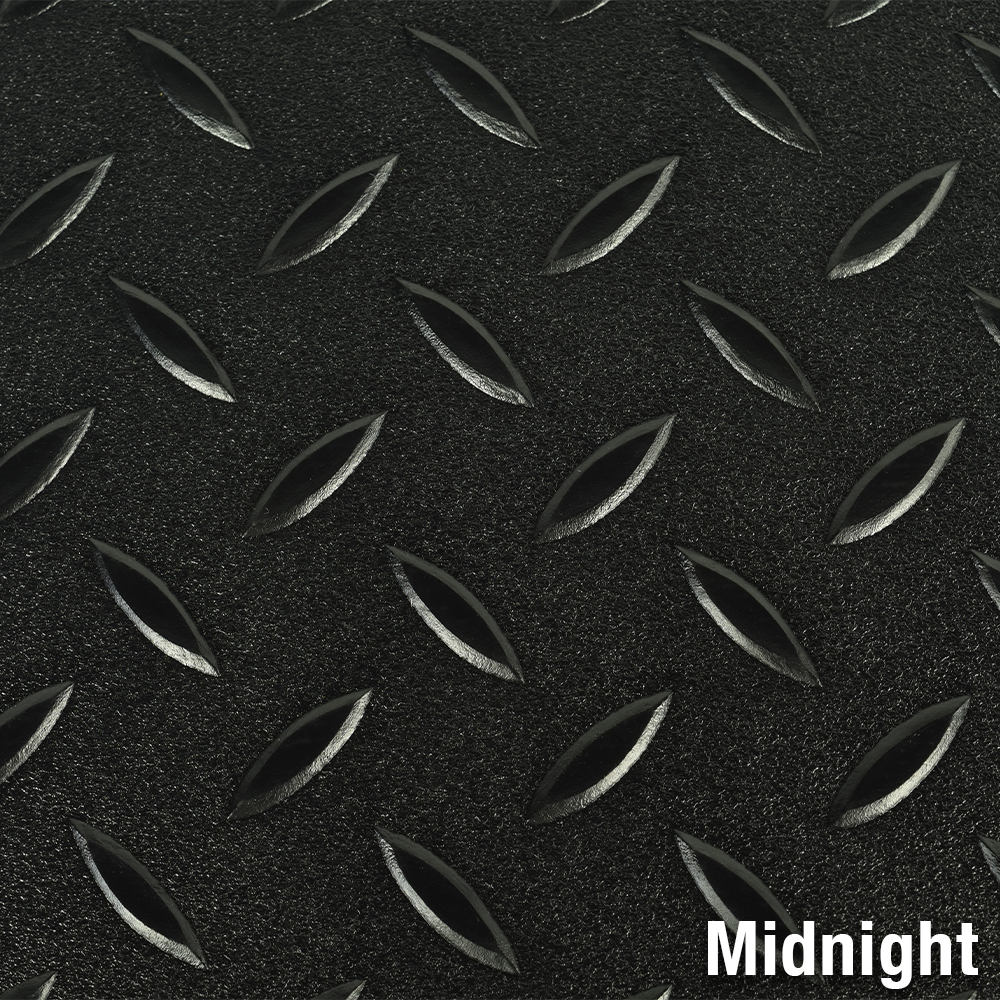

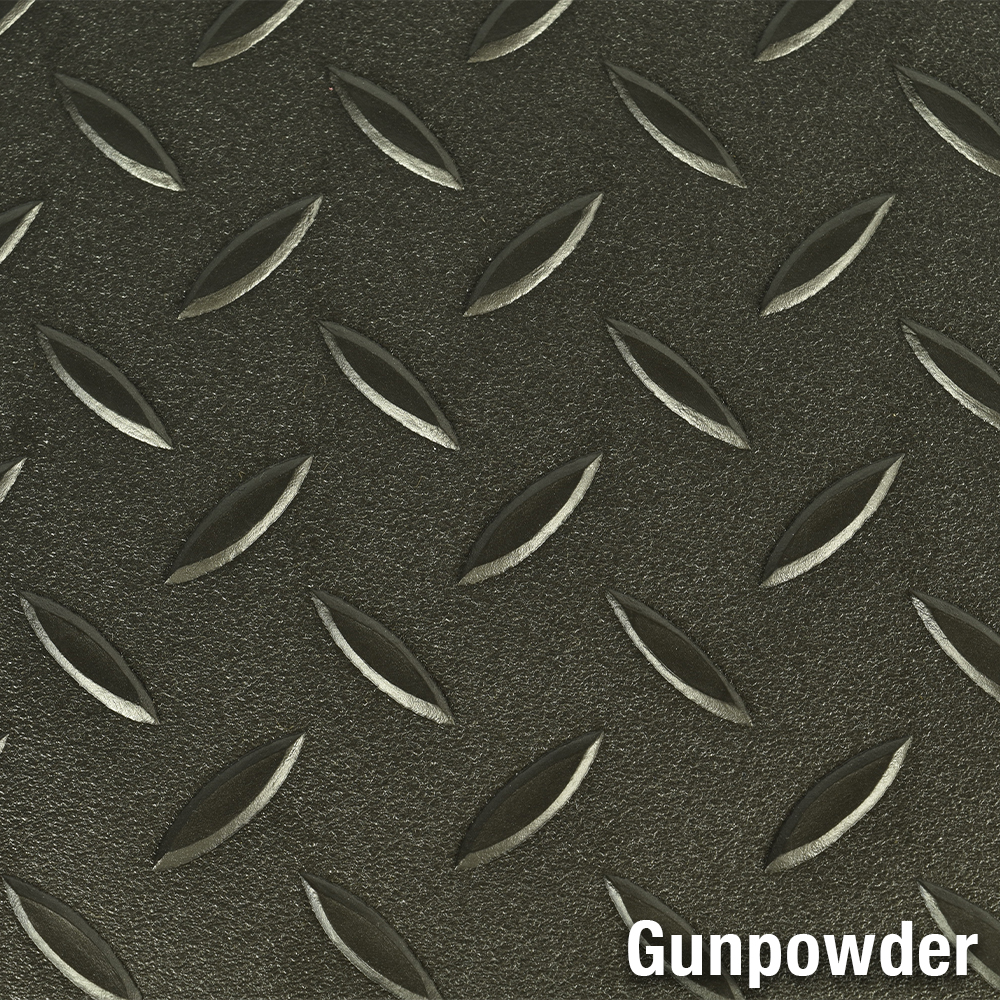

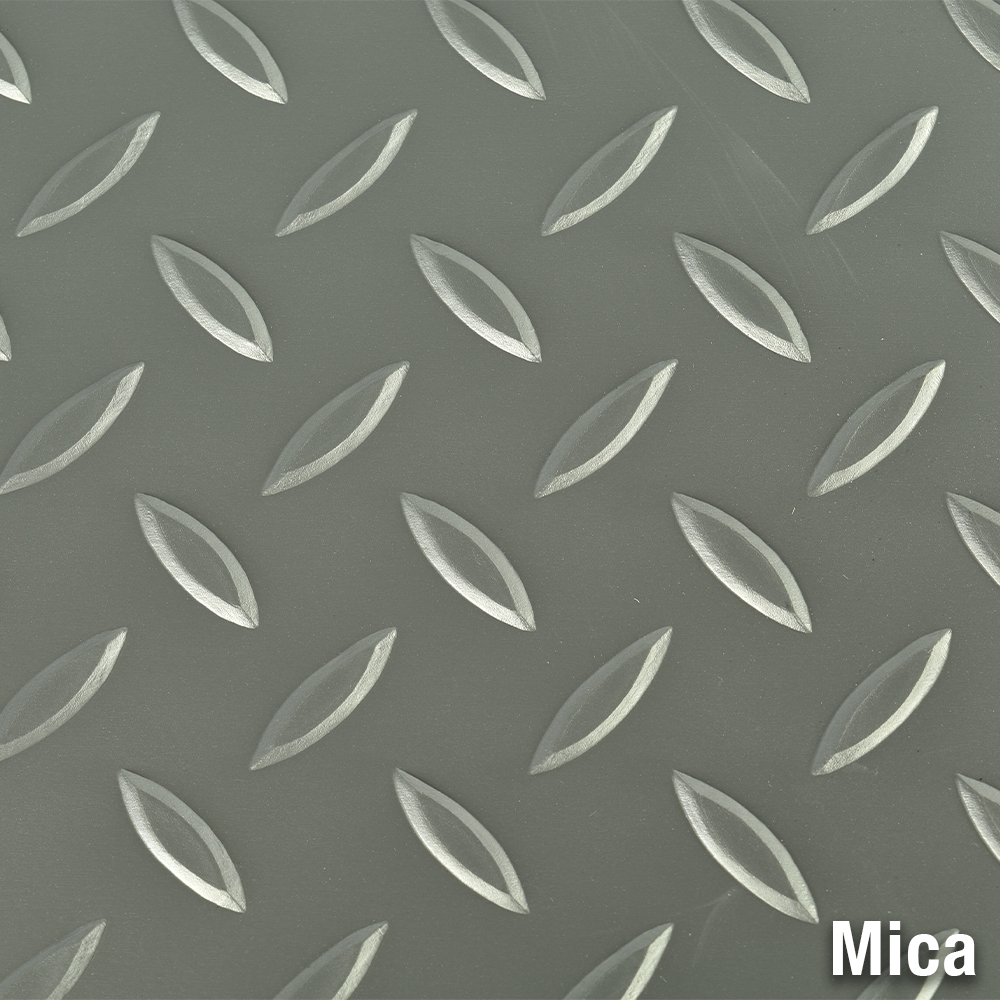

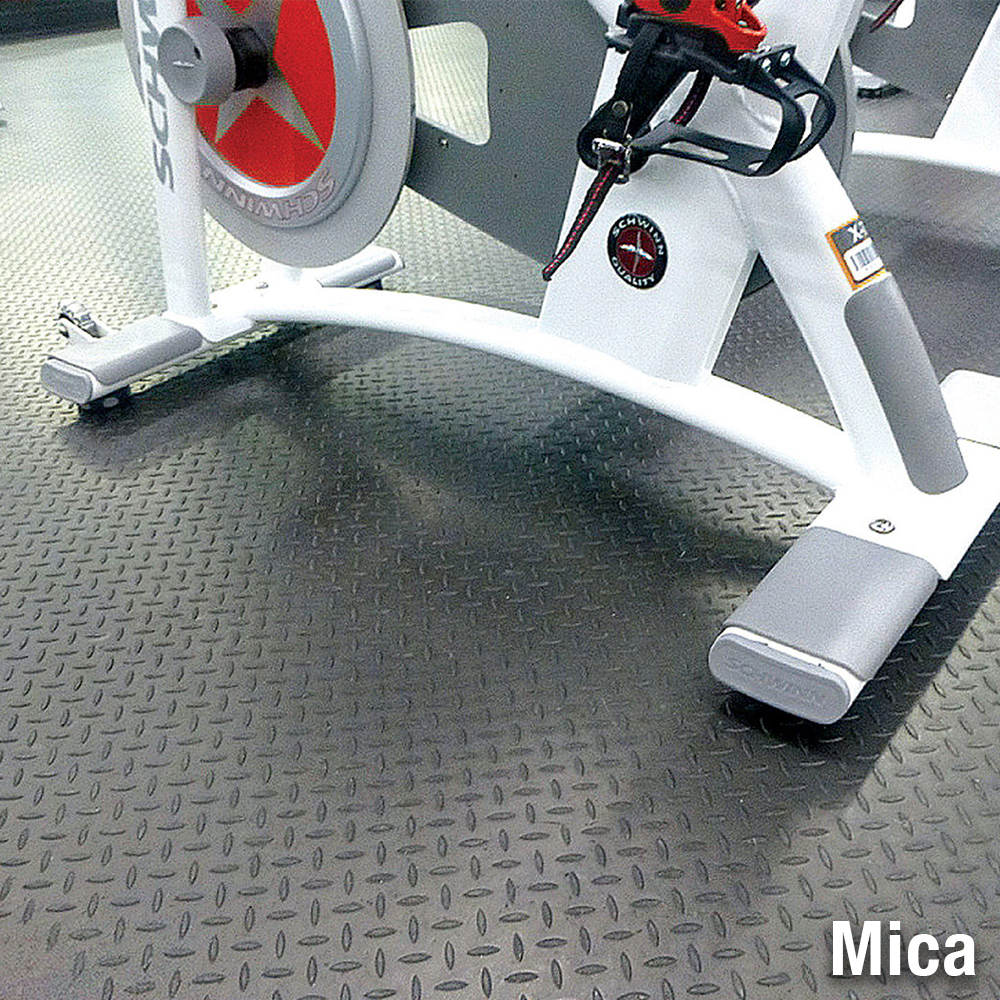

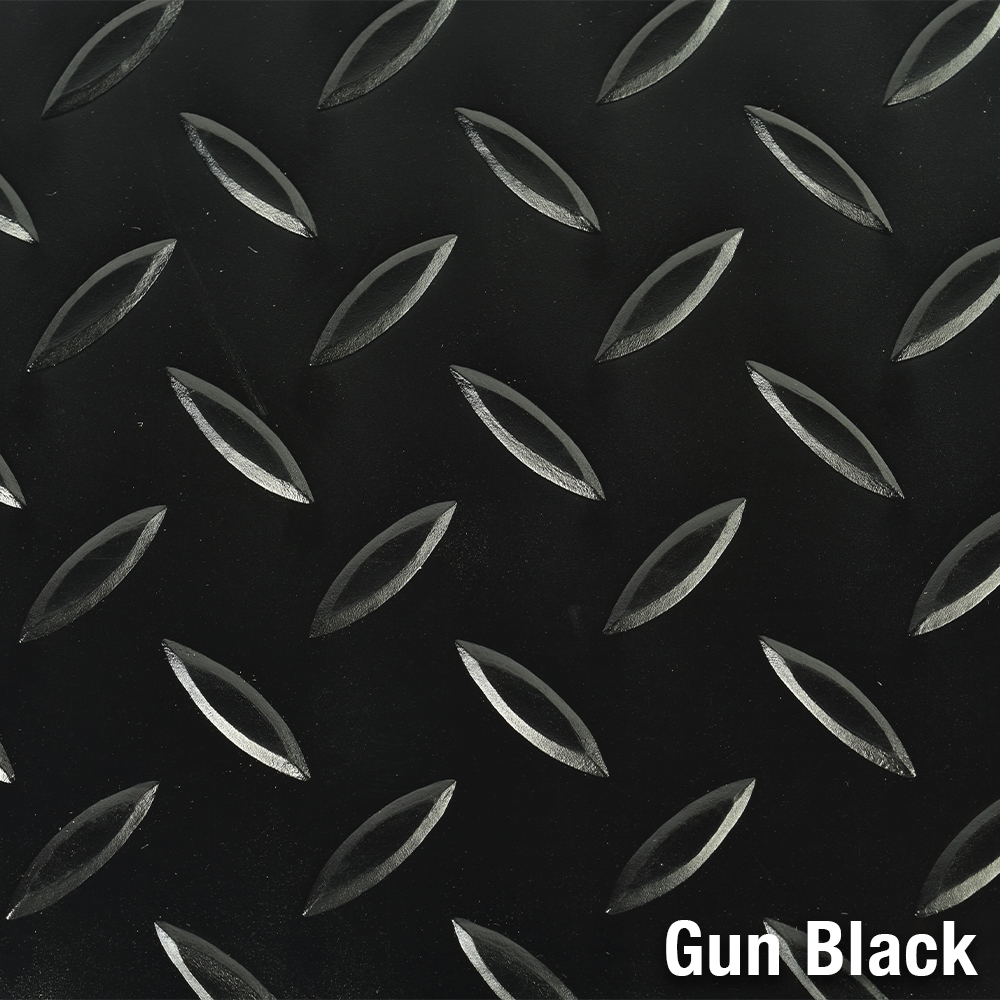

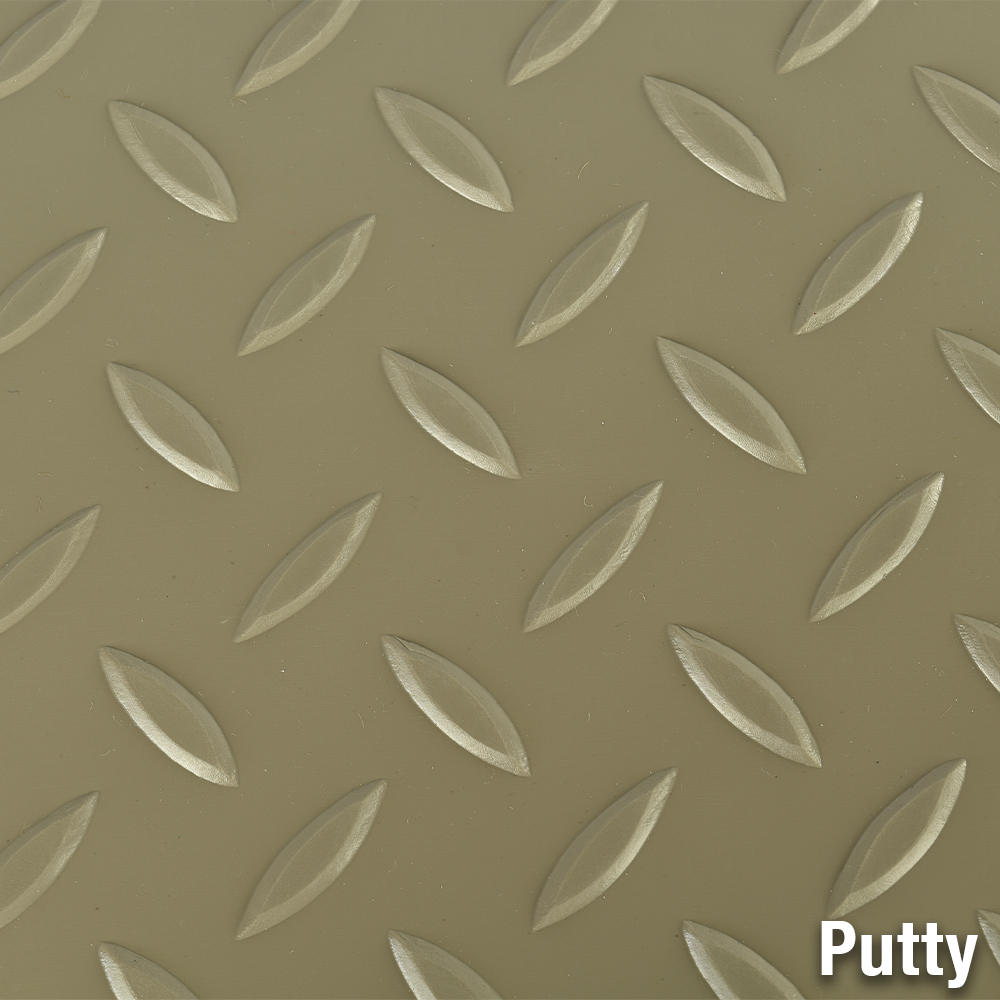

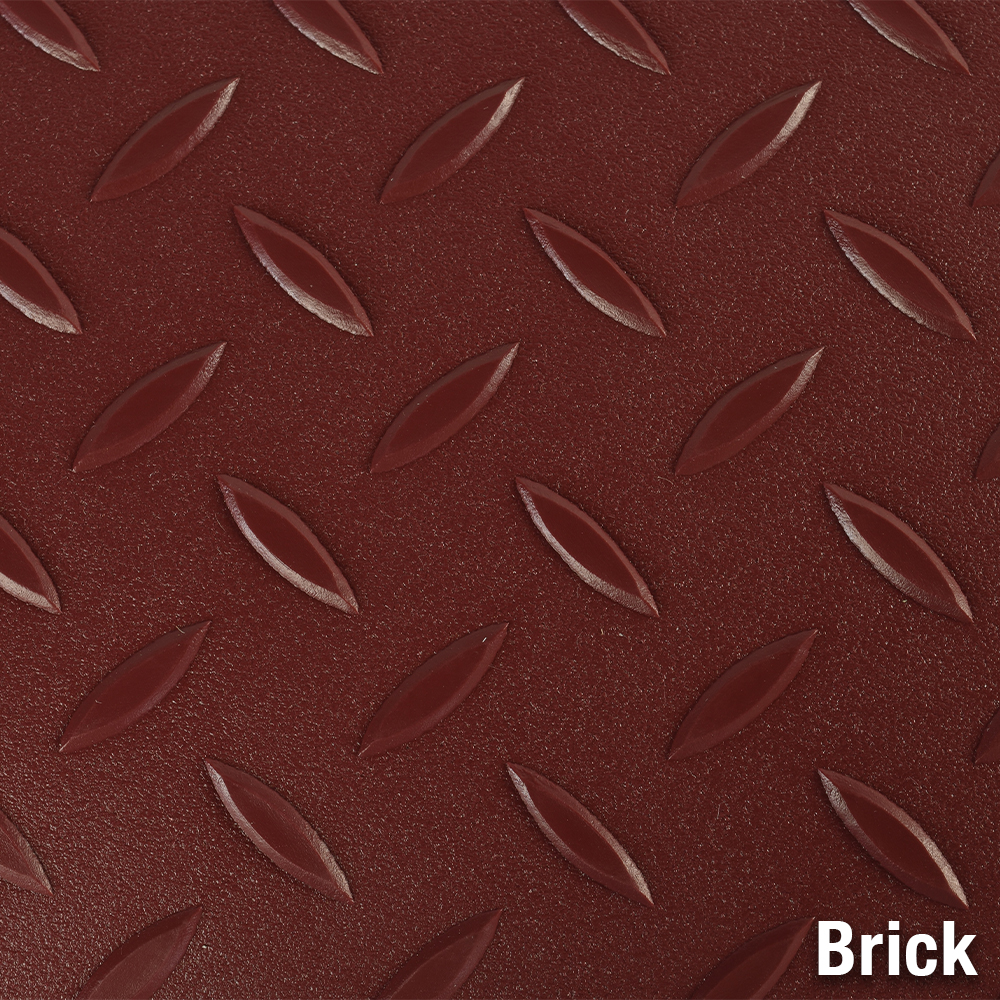

The LonPlate II is available in mica, gunpowder, midnight, brick, gun black, gunmetal, and putty colors. The brick, gunpowder, and midnight colors feature a slightly textured surface surrounding the diamond plate embossing. The gun black, putty, mica, and gunmetal colors have a smooth surface texture surrounding the diamond plate embossing.

As sturdy as the original, but with smaller stamping and larger spacing, the LonPlate® II is made in part from recycled content and is GreenAir and GreenMedic certified. It’s phthalate-free, as well. It meets FMVSS 302: CFR 49 §571.302 for Flammability of Interior Materials. It’s a Type I, Grade 1, Class B ASTM F1303 product that is rated for commercial use. It’s FloorScore certified, and it’s made of low-emitting materials and post-industrial recycled content.

This diamond plate vinyl flooring has a solid, diamond surface pattern and an embossed finish. It’s antimicrobial, and it contributes to LEED points.

Installation of LonPlate II Vinyl Flooring

When installing the vinyl flooring, a glue-down installation is necessary. Seams need to be chemical-welded. A flooring contractor should install this product.

For General Lonseal Installation Information, click here.

For current installation documents from Lonseal, please visit the Lonseal website here click here.

LonPlate® II by Lonseal®, Made Using The Highest Level Of Manufacturing Standards

The diamond plate vinyl flooring is manufactured using the highest level of safety standards in the flooring industry. The flooring has been formulated to not suffer from degradation, and the FloorScore certification supports IAQ (indoor air quality). This sheet vinyl flooring is mading using technological, visual, and textured innovations, creating the best of traditional and contemporary compositions with a unique look that never goes out of style. This floor is the perfect balance of function and beneficial effects for the highest performing industrial flooring available.

This flooring product qualifies for the Indoor Environmental Quality Credit. This credit shows that the product meets the General Emissions Evaluation and VOC content requirements. The product boasts FloorScore® certification from the Resilient Floor Covering Institute (RFCI) and Scientific Certification Systems which independently test and certify flooring products for compliance with indoor air quality emission requirements. It also meets the standards for the Collaborative for High Performance Schools (CHPS), a green building rating program especially designed for schools.

This commercial-grade, industrial flooring product is a fantastic product to use in so many settings and applications. Reach out to the customer service team at Greatmats for more information, or, for help with placing your order. This industrial vinyl flooring will look great and perform well for years to come.

FEATURES (data shown is nominal / 8 ft. have a thinner backing layer):
Roll Width: 6 ft. (1.8 m)
Roll Length: 60 ft. (18.3 m)
Overall Thickness 6 ft.: 0.120 in. (3.0 mm)
Wear Layer Thickness: 0.040 in. (1.0 mm)
Weight 6ft.: 0.8 lbs./sq. ft. (3.8 kg/m2)
MEETS FMVSS 302: CFR 49 §571.302 Flammability of Interior Materials
ASTM F1303 CLASSIFICATION: Type I, Grade 1, Class B, Commercial Use
CERTIFIED: FloorScore®
EXCLUSIVE LONSEAL® FORMULATIONS: GreenAir® & GreenMedic®
LEEDv4/4.1 CONTRIBUTION Building & Construction Interiors:
Environmental Product Declarations Option 1
Sourcing of Raw Materials Option 2
Low-Emitting Materials
Pre-Consumer (Post-Industrial) Recycled Content
WARNING: California Proposition 65
Pattern: Diamond, Solid
Finish: Embossed
Width: 6 ft. (72 in.) (1.8 m)
Green Specs: RECYCLED CONTENT, ANTIMICROBIAL, FLOORSCORE, LOW VOC, CONTRIBUTES TO LEED V4/4.1, ASTM F1303 CLASSIFIED, FMVSS

Disclaimer

Installation should be completed by a flooring contractor experienced with this type of vinyl flooring.

Due to its heavy embossing, proper heat welding of this product is not possible. A welding thread is not available for this product. This flooring requires a chemical welding process.

No warranty on residential installations.

Maintenance

Routine maintenance: Sweep, vacuum, or mop surface. Please review LonSeal Flooring Maintenance Guide.

Shipping

Ships via freight delivery

This Product Ships Freight Only.
Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SKU#	LS-lonplate-ii-6
In Stock	Yes
Product Type	Roll
Material Type	Vinyl
Product Edging	Straight
Thickness	3 mm
Width	6.00 feet
Length	60.00 feet
SF per Item	360.00
Weight	290.00 lbs
Packaging	Shrink Wrapped on Pallets
Non Absorbent	No
Special Adhesives	No
Interlock Loss	0.00 feet
Interlocking Connections	No
Made In	Japan
Surface Finish	Diamond Plate
Surface Design	Solid color
Installation Method	Glue down, weld seams
UV Treated	No
Reversible	No
Border Strips Included	No
LEED Points	Yes
Floor Score	Yes
Manufacturer Warranty	Limited manufacturer warranty
