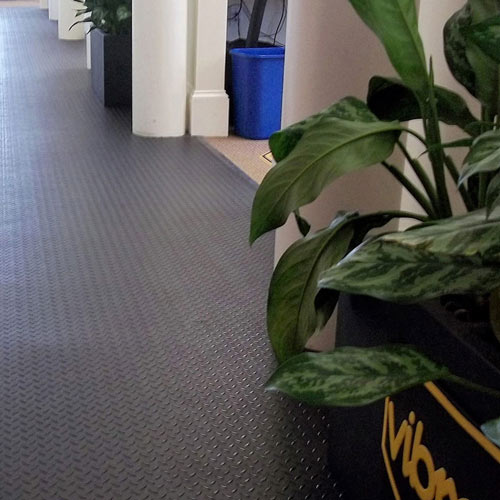

LonPlate II 8 Install hallway midnight
/images/lonseal/lonplate-ii-hallway-midnight-labeled.jpg
LonPlate II 8 Install engine room gunpowder
/images/lonseal/lonplate-ii-engine-room-gunpowder-labeled.jpg

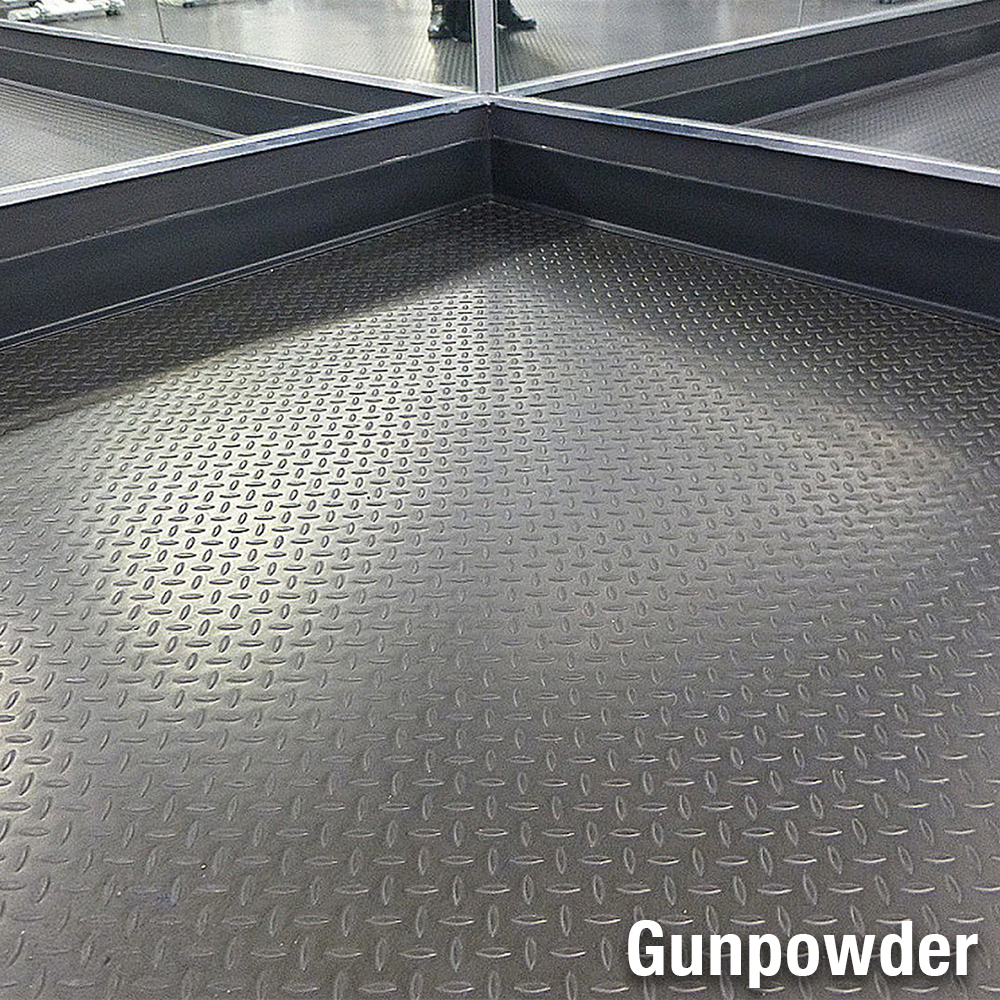

LonPlate II 8 Install corner gunpowder
/images/lonseal/lonplate-ii-corner-install-gunpowder-labeled.jpg
LonPlate II Mica full
/images/lonseal/lonplate-ii-mica-full-1.jpg
LonPlate II 8 Midnight full
/images/lonseal/lonplate-ii-midnight-full-1.jpg
LonPlate II 8 gunpowder full
/images/lonseal/lonplate-ii-gunpowder-full-labeled.jpg

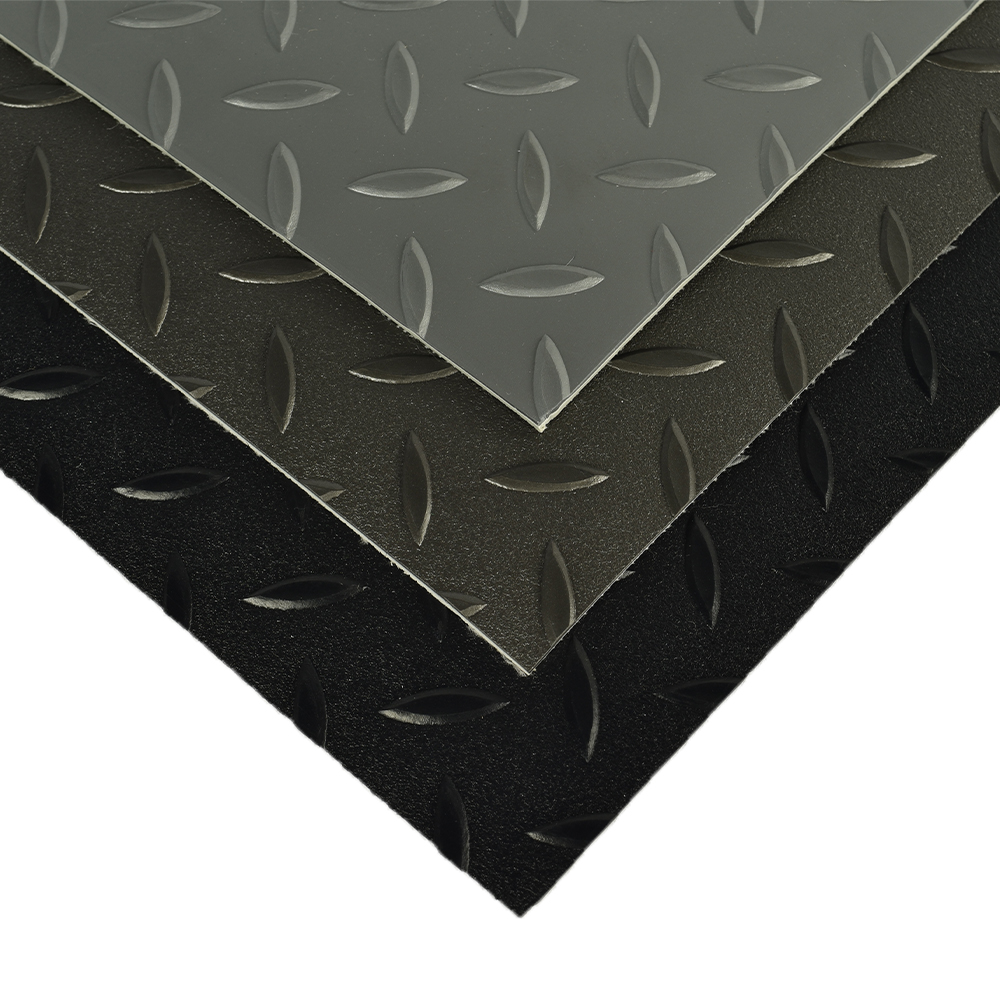

LonPlate II 8 all colors stack
/images/lonseal/lonplate-ii-8ft-colors-stack.jpg
Be the first to review this product
$3,564.11/roll
Save 14%
$7.43/sqft
Reg: $4,193.07/roll
Handling Time Estimate: 4-6 Working Days
  • Installation should be completed by a contractor
  • Steel diamond plate design surface
  • Tough skid resistant vinyl material
  • See More Details

Colors:

  • Gunpowder
  • Mica
  • Midnight
How Much Flooring Do I Need?

Please call 877-822-6622 to backorder this product.

Pickup
Delivery
Request Sales Quote
Please Call for Sample Options
  1. Installation should be completed by a contractor
  2. Steel diamond plate design surface
  3. Tough skid resistant vinyl material
  4. Stands up to high traffic areas
  5. Available in black and two shades of gray
  6. Industrial design aesthetics
  7. GreenAir® and GreenMedic®
  8. FloorScore - Indoor Air Quality Certified

Commercial Flooring, Fitness Flooring, Retail Flooring, Displays, Specialty Vehicle Flooring

NOTE: This item is a custom order and is not returnable.

LonPlate® II diamond plate vinyl flooring is an extremely durable flooring product that’s designed to withstand areas subject to high foot traffic and specialty vehicles.

This multi-purpose, skid-resistant, robust flooring has a rugged and strong steel-plating design that combines a toughness wanted and needed in industrial settings. This product is often used in corporate and retail settings, exhibits, entertainment venues, airports, military vehicles, educational settings, fitness centers, hotels, fixtures, and displays.

In any situation where skid resistance is a must, the diamond plate vinyl flooring can go to work. It looks great and performs really well in so many different settings and environments.
The LonPlate II 8x60 Foot Rolls are available in mica, gunpowder, and midnight colors. The gunpowder and midnight colors feature a slightly textured surface surrounding the diamond plate embossing. The mica color has a smooth surface texture surrounding the diamond plate embossing.

Installation of LonPlate II Vinyl Flooring


When installing the vinyl flooring, a glue-down installation is necessary. Seams need to be chemical-welded. A flooring contractor should install this product.

For General Lonseal Installation Information, click here.

For current installation documents from Lonseal, please visit the Lonseal website here click here.

LonPlate® II by Lonseal®, Eco-Friendly, Diamond Plate Vinyl Flooring Specs


The LonPlate II Diamond Plate Vinyl Flooring Rolls are 8-foot by 60-foot rolls that are 2 mm thick and available in mica, gunpowder, and midnight.

As sturdy as the original, but with smaller stamping and larger spacing, the LonPlate® II is made in part from recycled content and is GreenAir and GreenMedic certified. It’s phthalate free, as well. It meets FMVSS 302: CFR 49 §571.302 for Flammability of Interior Materials. It’s a Type I, Grade 1, Class B ASTM F1303 product that is rated for commercial use. It’s FloorScore certified, and it’s made of low-emitting materials and post-industrial recycled content.

This diamond plate vinyl flooring has a solid, diamond surface pattern and en embossed finish. It’s antimicrobial, and it contributes to LEED points.

LonPlate® II by Lonseal®, Made Using The Highest Level Of Manufacturing Standards


The diamond plate vinyl flooring is manufactured using the highest level of safety standards in the flooring industry. The flooring has been formulated to not suffer from degradation, and the FloorScore certification supports IAQ (indoor air quality). This sheet vinyl flooring is mading using technological, visual, and textured innovations, creating the best of traditional and contemporary compositions with a unique look that never goes out of style. This floor is the perfect balance of function and beneficial effects for the highest performing industrial flooring available.

This flooring product qualifies for the Indoor Environmental Quality Credit. This credit shows that the product meets the General Emissions Evaluation and VOC content requirements. The product boasts FloorScore® certification from the Resilient Floor Covering Institute (RFCI) and Scientific Certification Systems which independently test and certify flooring products for compliance with indoor air quality emission requirements. It also meets the standards for the Collaborative for High Performance Schools (CHPS), a green building rating program especially designed for schools.

FEATURES (data shown is nominal / 8 ft. have a thinner backing layer):
Roll Width: 8 ft. (2.4 m)
Roll Length: 60 ft. (18.3 m)
Overall Thickness 8 ft.: 0.100 in. (2.5 mm)
Wear Layer Thickness: 0.040 in. (1.0 mm)
Weight 8ft.: 0.6 lbs./sq. ft. (2.8 kg/m2)
MEETS FMVSS 302: CFR 49 §571.302 Flammability of Interior Materials
ASTM F1303 CLASSIFICATION: Type I, Grade 1, Class B, Commercial Use
CERTIFIED: FloorScore®
EXCLUSIVE LONSEAL® FORMULATIONS: GreenAir® & GreenMedic®
LEEDv4/4.1 CONTRIBUTION Building & Construction Interiors:
Environmental Product Declarations Option 1
Sourcing of Raw Materials Option 2
Low-Emitting Materials
Pre-Consumer (Post-Industrial) Recycled Content
WARNING: California Proposition 65
Pattern: Diamond, Solid
Finish: Embossed
Width: 8 ft. (96 in.) (2.4 m)
Green Specs: RECYCLED CONTENT, ANTIMICROBIAL, FLOORSCORE, LOW VOC, CONTRIBUTES TO LEED V4/4.1, ASTM F1303 CLASSIFIED, FMVSS

Disclaimer


Installation should be completed by a flooring contractor experienced with this type of vinyl flooring.

Due to its heavy embossing, proper heat welding of this product is not possible. A welding thread is not available for this product. This flooring requires a chemical welding process.

No warranty on residential installations.

Maintenance

Routine maintenance: Sweep, vacuum, or mop surface. Please review LonSeal Flooring Maintenance Guide.


Shipping

Ships via freight delivery

This Product Ships Freight Only.
Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SKU# LS-lonplate-ii-8
In Stock Yes
Product Type Roll
Material Type Vinyl
Product Edging Straight
Thickness 2.5 mm
Width 8.00 feet
Length 60.00 feet
SF per Item 480.00
Weight 290.00 lbs
Packaging Shrink Wrapped on Pallets
Non Absorbent No
Special Adhesives No
Interlock Loss 0.00 feet
Interlocking Connections No
Made In Japan
Surface Finish Diamond Plate
Surface Design Solid color
Installation Method Glue down, weld seams
UV Treated No
Reversible No
Border Strips Included No
LEED Points Yes
Floor Score Yes
Manufacturer Warranty Limited manufacturer warranty
